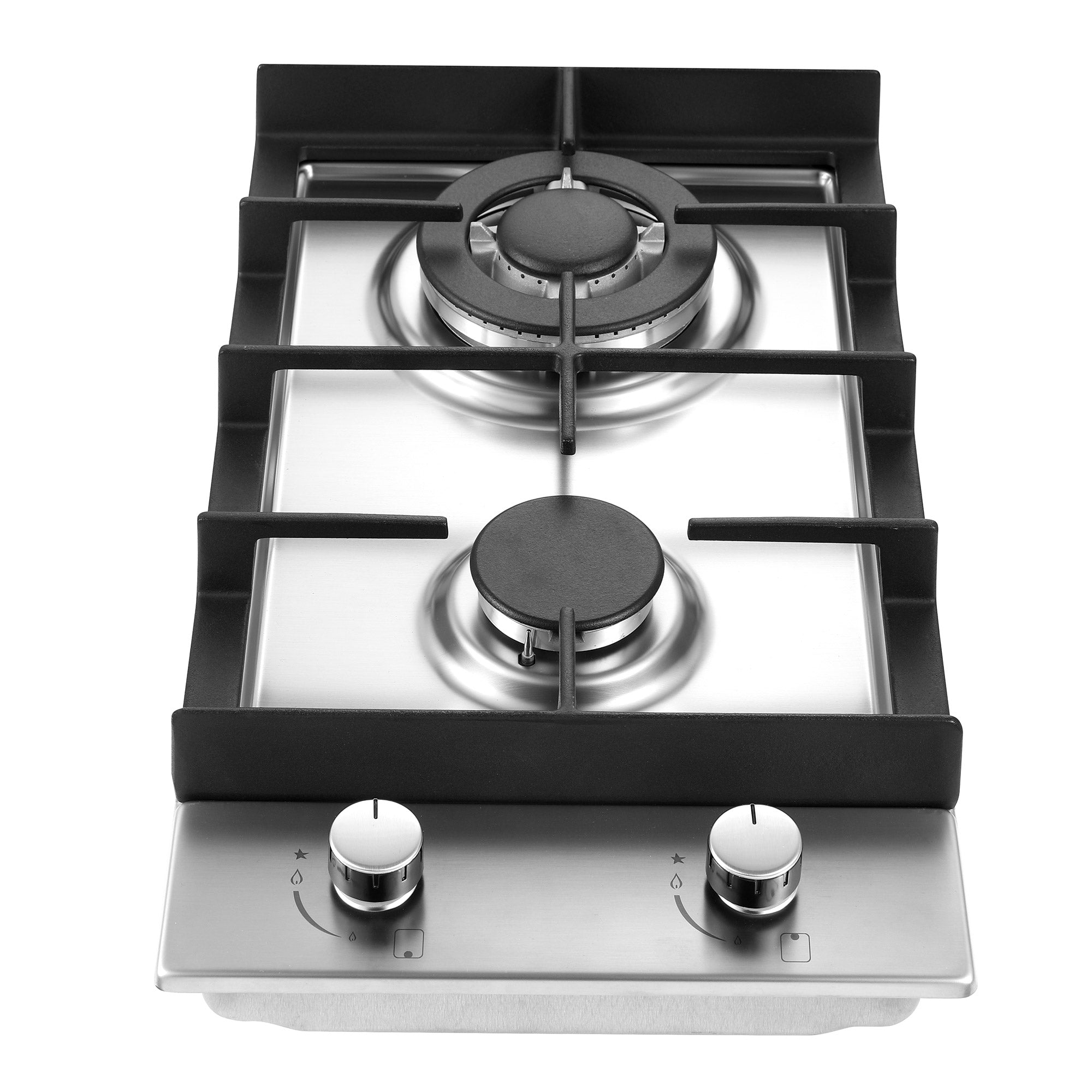

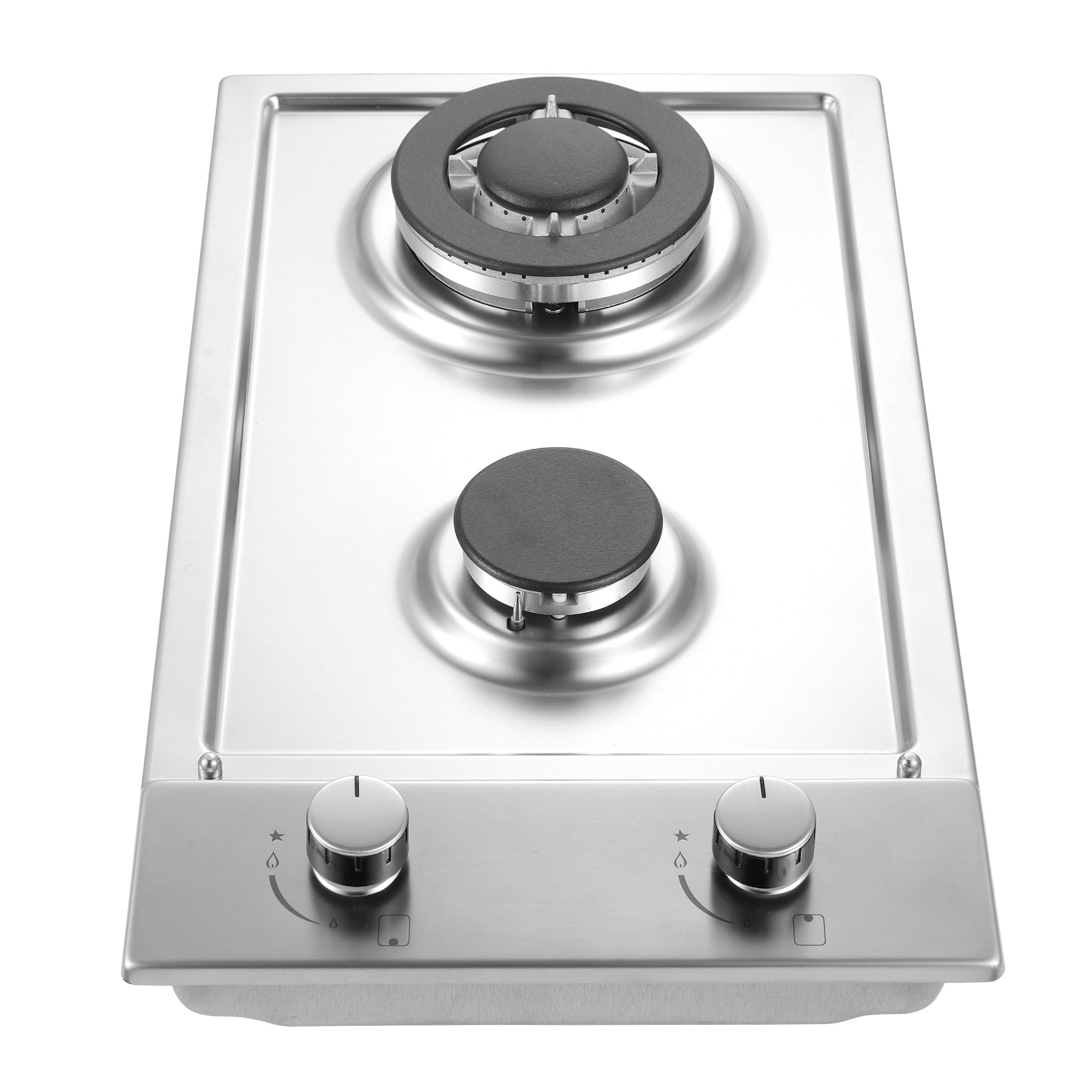

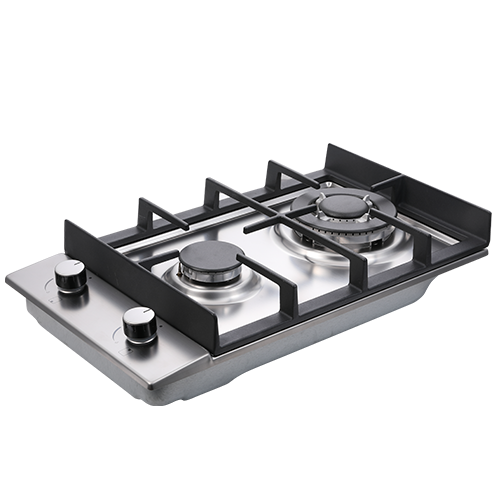

GC001-122S - 12 inch - 2 Burner Bulit-in Stainless Steel Gas Cooktop with Thermocouple Protection
Key Features
- 2 Burner Propane Cooktop: 5,000-BTU and 10,500-BTU

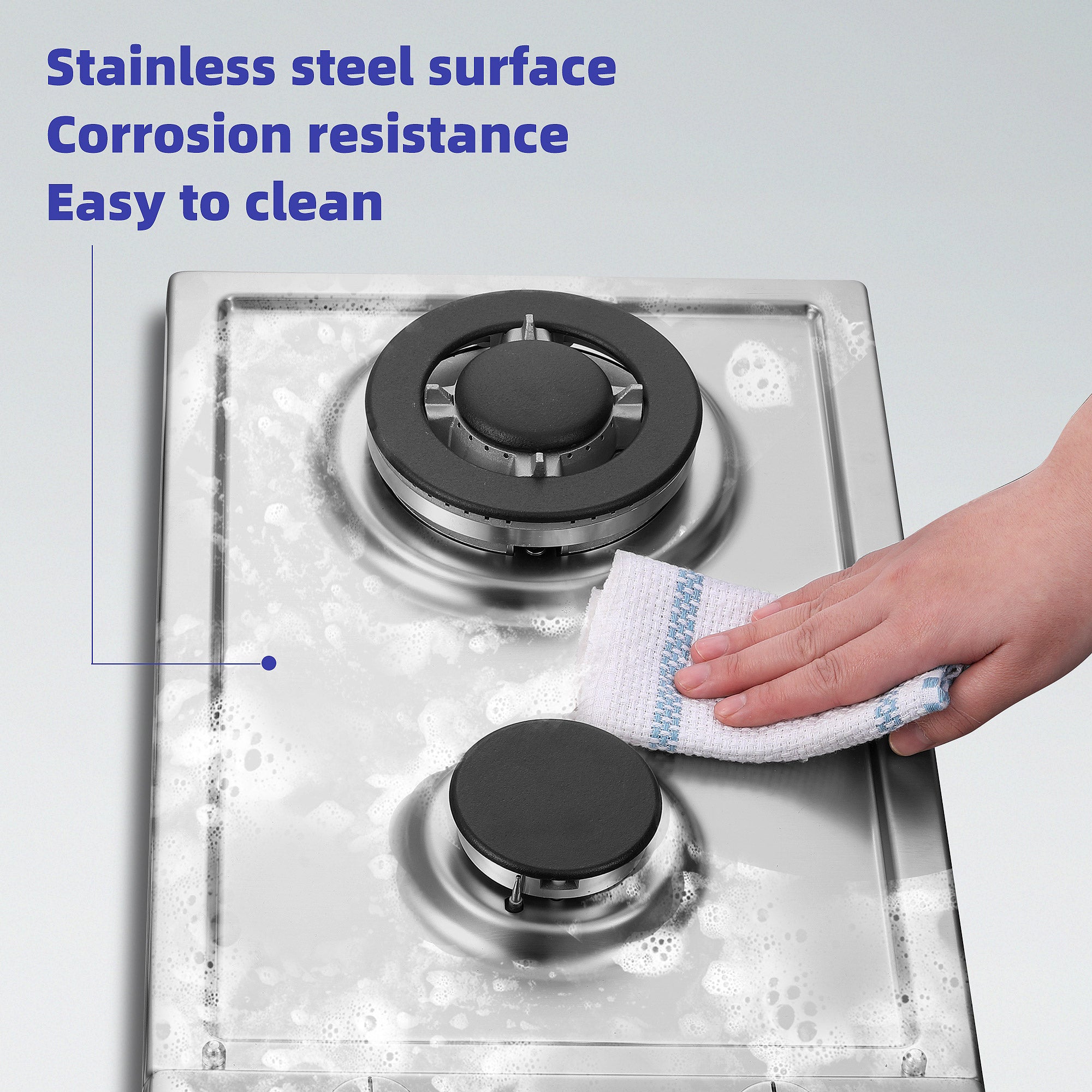

- Brushed Stainless Steel Surface
- Between two burners is around 8.08 inches
- Child protection lock
- Featuring a thermocouple flame-out failure system (FFD)
- Built-in Gas Stove: 11.6" W * 20.4" L * 3.9"H
Warranty & Refund
- We provide the 36-Month Free Warranty for all products purchase.
- You may return items purchased on www.tieasyfactory.com within 30 days of purchase for a full refund.
- Learn More.
Shipping
- We offer FREE STANDARD SHIPPING for all orders around mainland US.
- Each order requires 1 business days for processing.
- Usually, it takes approximately 4-7 business days for express shipping depending on different areas and shipping carriers.
- Learn More.

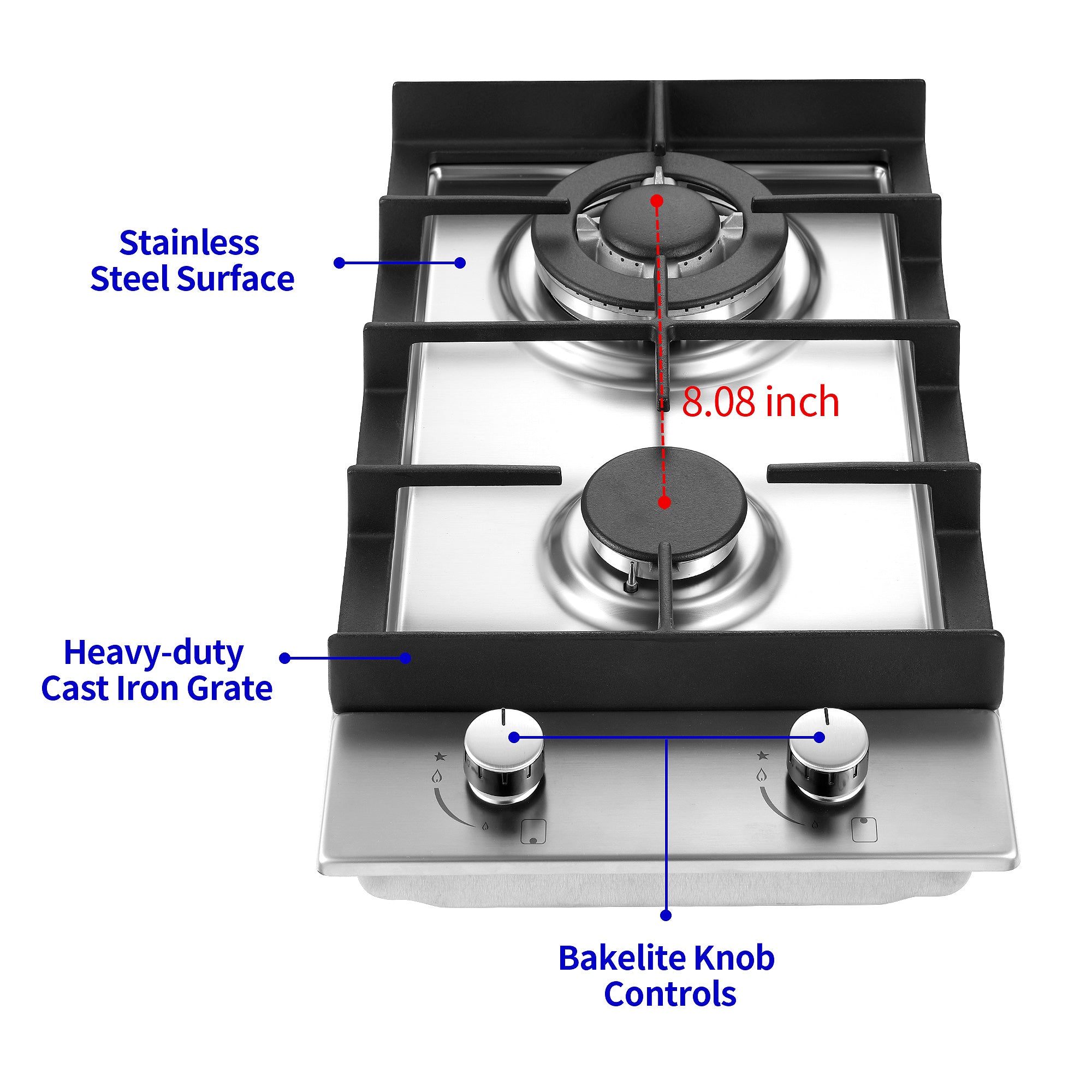

Features

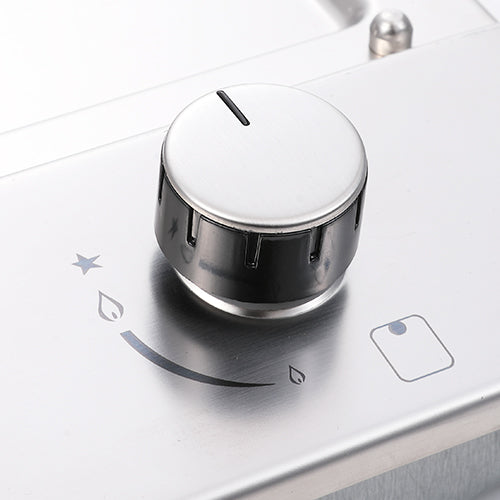

Bakelite Knob Controls
Melt-proof and anti-scalding bakelite knob controls,with child protection lock,need to press and rotate at the same time to ignite, preventing children from accidentally touching.

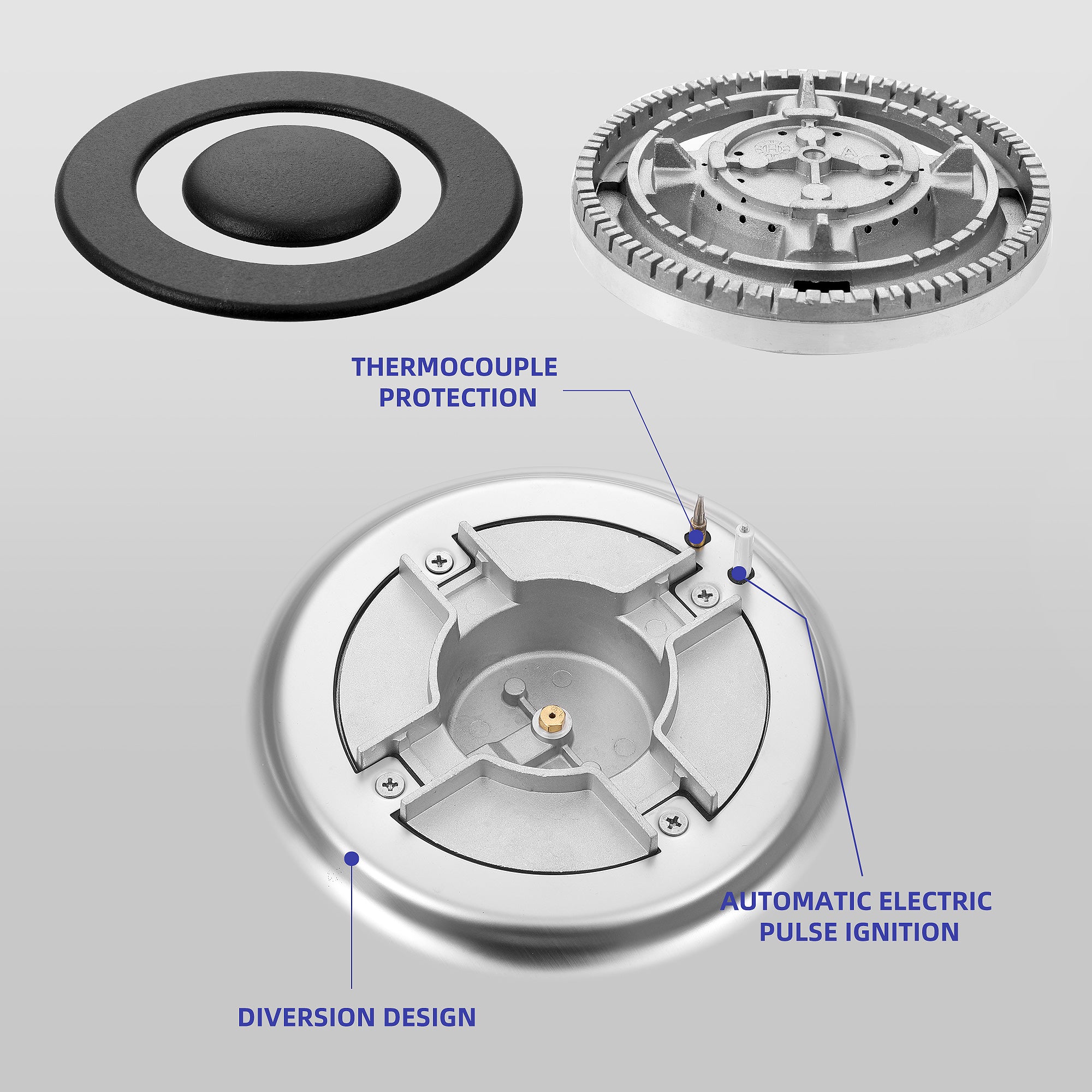

Thermocouple Protection
Every burner unit is installed a thermocouple flame-out failure system (FFD), will automatically cut off the gas supply when the flame goes out unexpectedly, to avoid gas leakage.

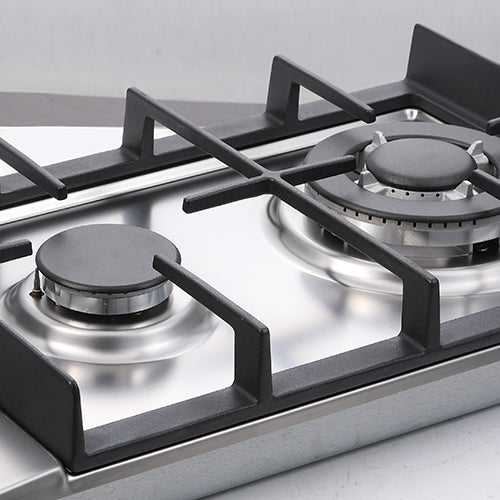

Heavy-Duty Cast Iron Pot Stand
One-piece heavy cast iron grate, easy to assemble and remove, will not deformed. The unique eight-claw structure is stronger and more stable than the four-claw and six-claw grate, can support the pot firmly, avoid letting the pan slip off.

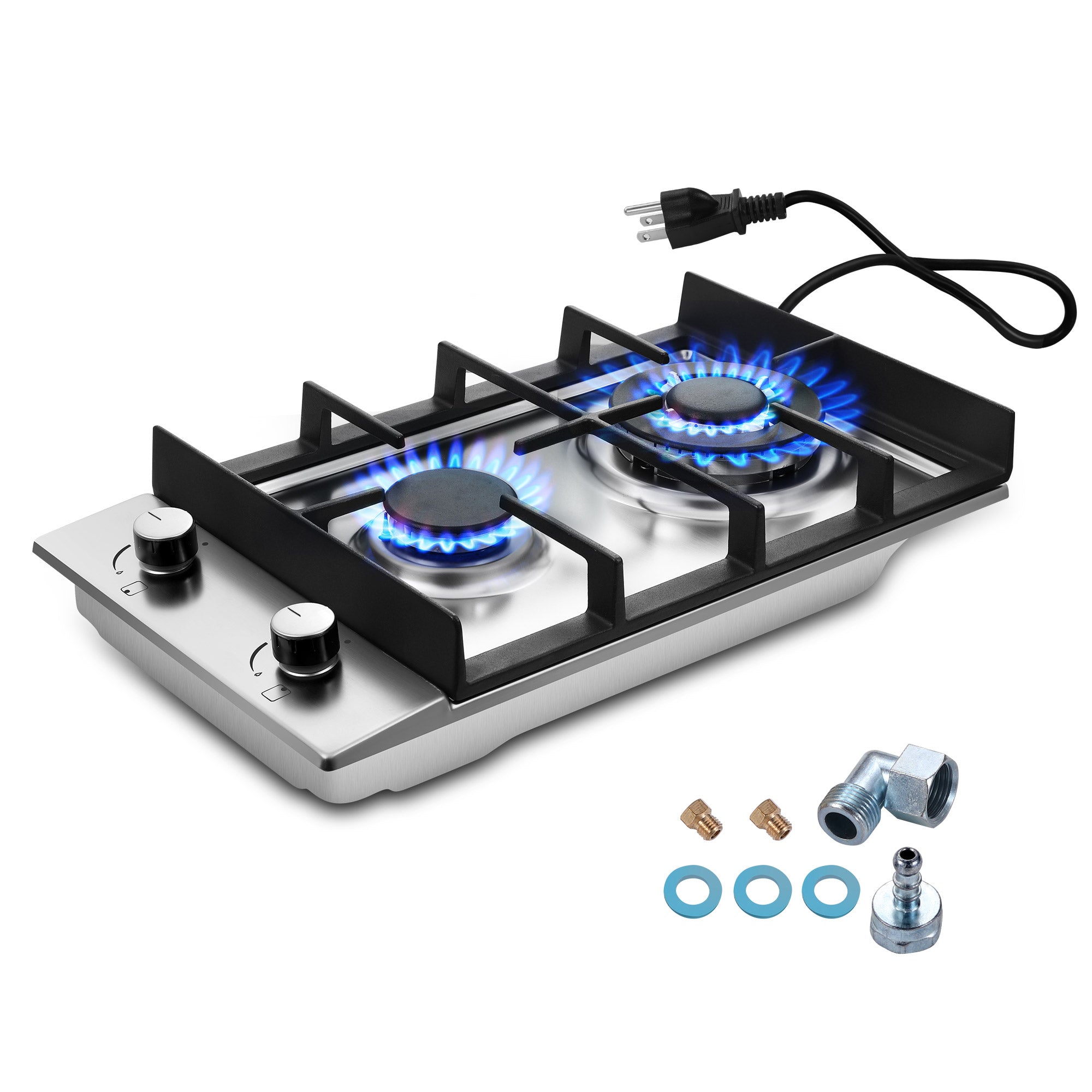

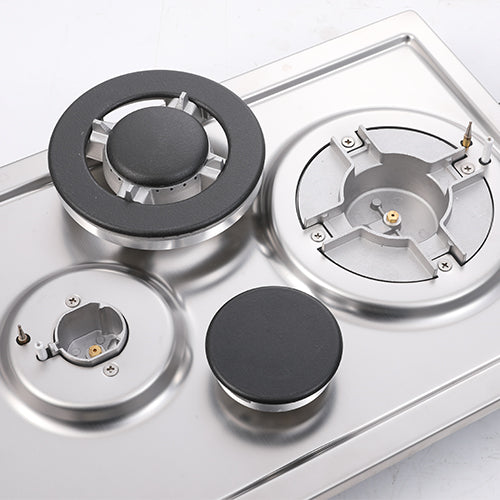

2 Burner Propane Cooktop
Features two sealed burners of different power, burner power is 5,000-BTU and 10,500-BTU, can be adjusted individually, meet various cooking needs. This gas stoves for kitchen is preinstalled for NG, extra LPG Nozzles included, can be changed to meet your needs.
Bulit-in RV Stove
- Built-in Gas Stove: Product size: 11.6" W x 20.4" L x 3.9"H, Cut out size: 10.7" Wx 18.9" L. Pre-installed 120v power cord. Please note that: Natural gas pressure regulator and gas pipe are NOT included.12 inch width suitable for RVs,apartments or outdoor, please verify this gas cooktop is the right size for you.
- Note: DO NOT install the stove in a damp closed environment, because long-term moisture will cause rust in the stainless steel panel.
Specifications
Refer to all the specification information of the product, if you still have doubts, please contact us!
Product Size
3.9 inch
20.4 inch
11.6 inch
Cut Out Size
3.9 inch
18.9 inch
10.7 inch
Details
GC001-122S
15.32 pounds
20.4"D x 11.6"W x 3.9"H
Wear-resistant
Sealed
2
Multi-color
Knob
120 Volts
116 watts
Dual Fuel
Stainless Steel
LPG Nozzles
Bulit-in

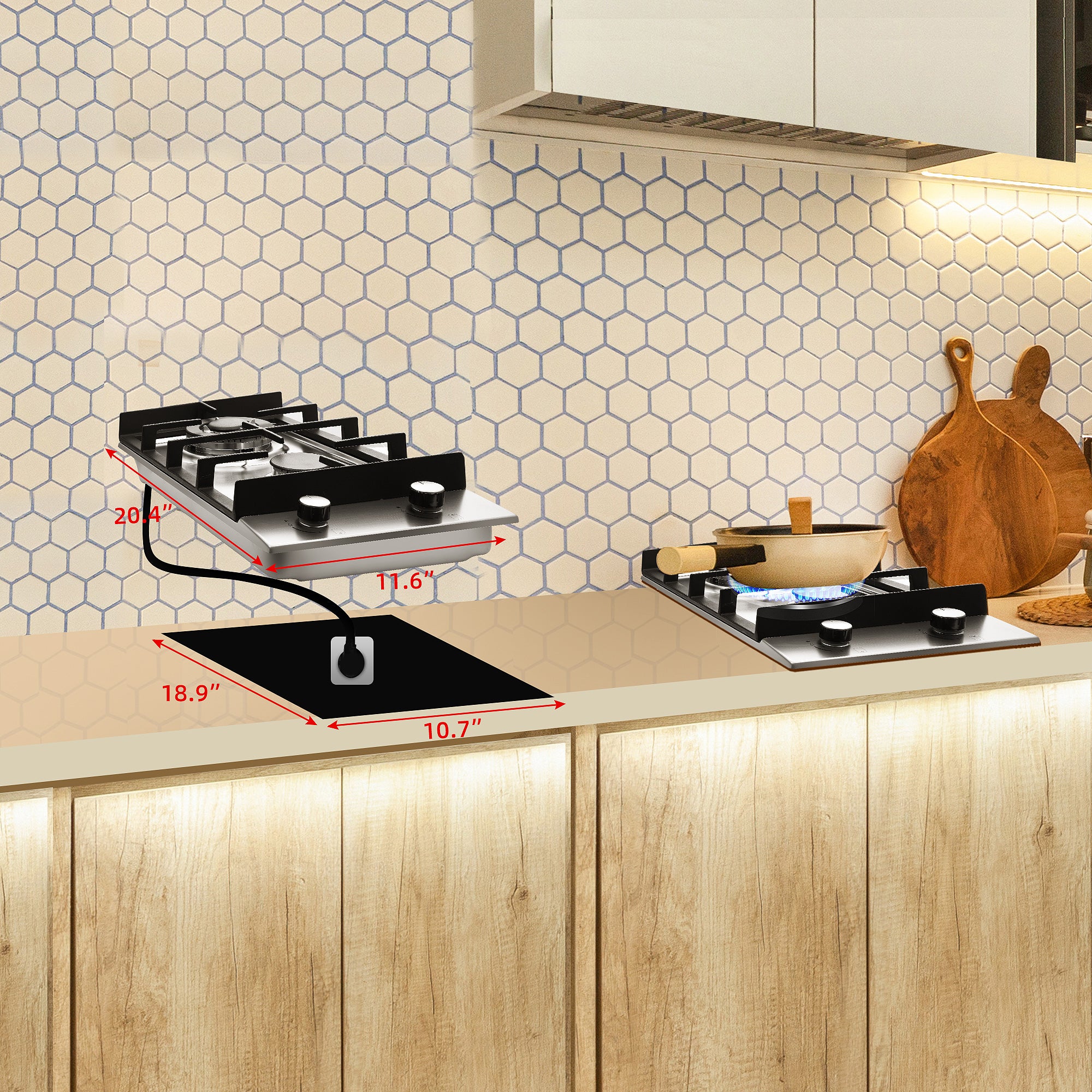

Installation of built-in gas cooktop
This gas cooktop is for bulit-in use only, please verify the gas cooktop is the right size for you.

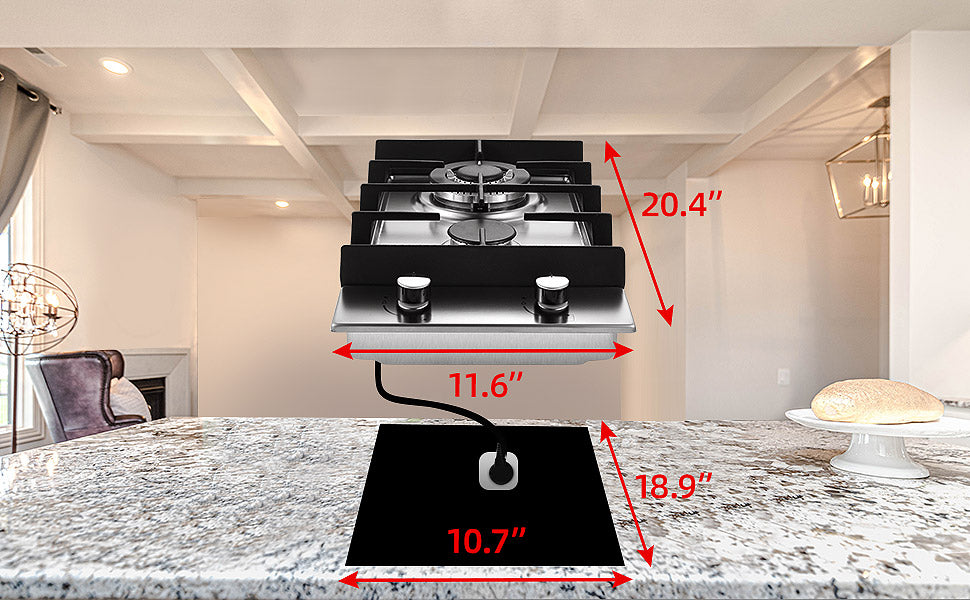

Product Dimensions: 11.6" W x 20.4" L x 3.9"H
Cut out Dimensions: 10.7" Wx 18.9" L
For a correct installation, the following precautions must be followed:
a) Fixing fittings (brackets, screws) are provided to place the gas cooktop on work top, measure 0.79 to 1.58 inch in thickness
b) In the event the gas cooktop is not installed on a built-in oven, a wooden panel must be inserted for insulation.This panel must be placed at least 0.79 inch distance from the bottom of cooktop.
c) When installing the gas cooktop on a built-in oven, the oven should be placed on two wooden strips; in the case of a joining cabinet surface, remember to leave a space of 1.78 x 22 inch at least from the back side.
Please note that:

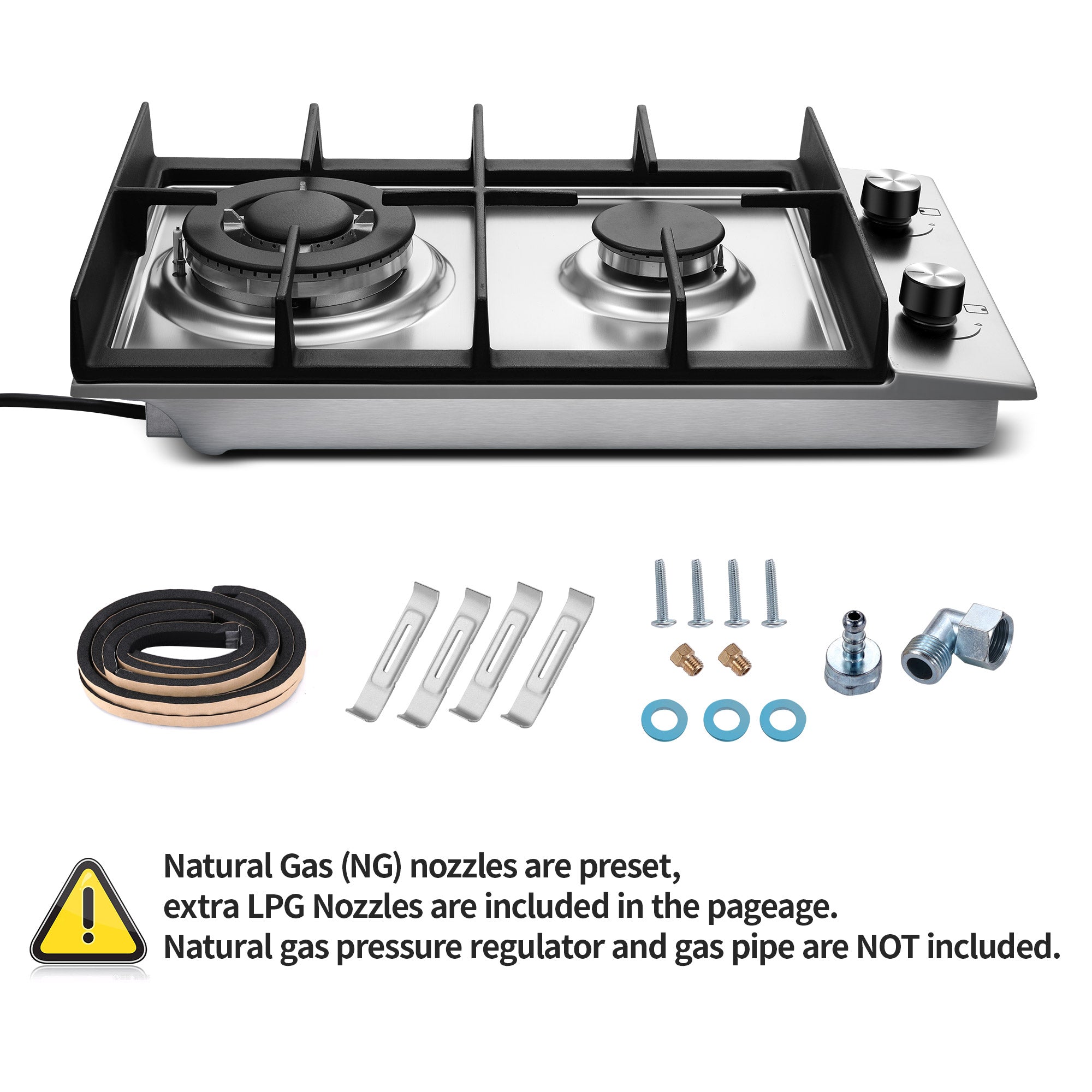

1) Extra LPG Nozzles included in the pageage, the natural gas pressure regulator and the gas pipe are NOT included.
2)It is recommended that gas stove be installed and tested by professionals.
Package Included
